Introduction
This article has specifications for all sensors sold by Situne

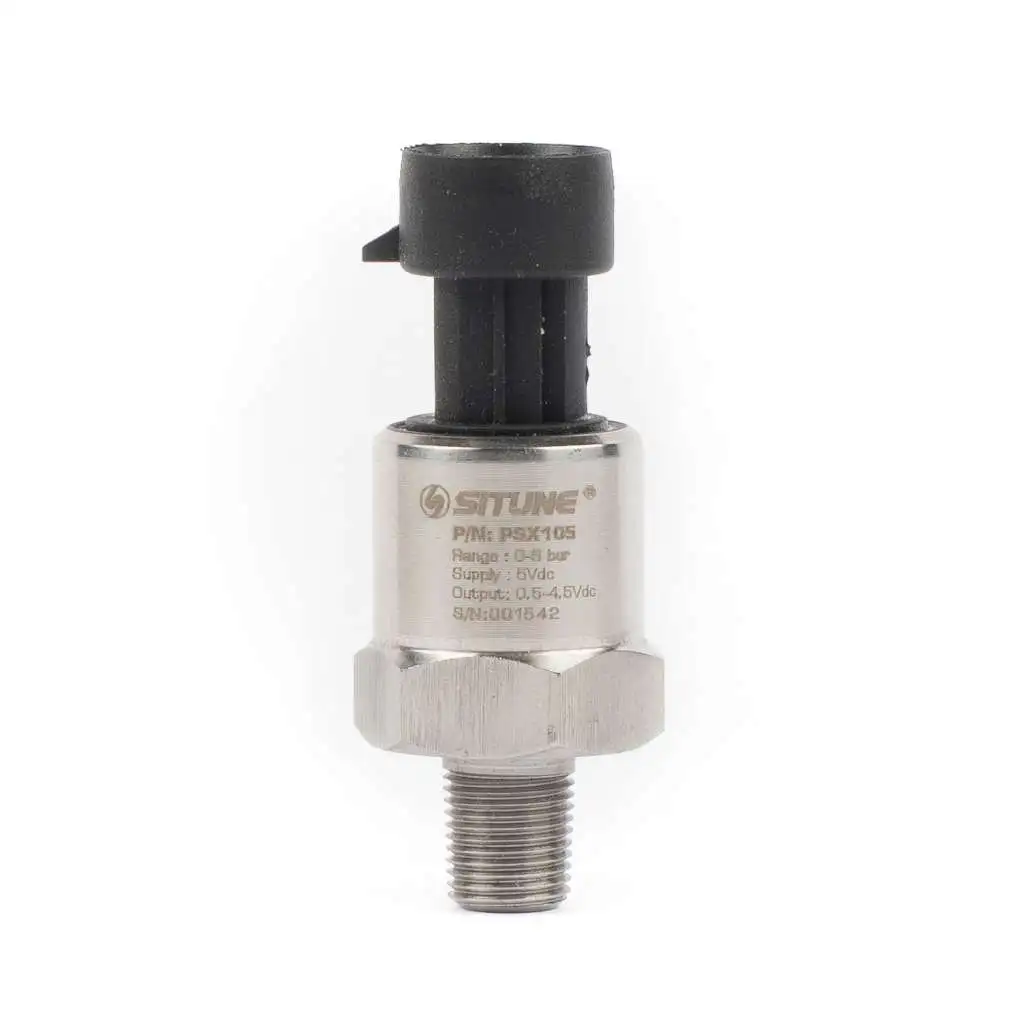

Situne PSX105 5 Bar Pressure Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Supply Voltage | 5.00 | VDC |
| Supply Voltage Tolerance | 10 | % |
Pressure
| Description | Value | Unit |
|---|---|---|
| Measurable range | 0 - 5 | Bar |

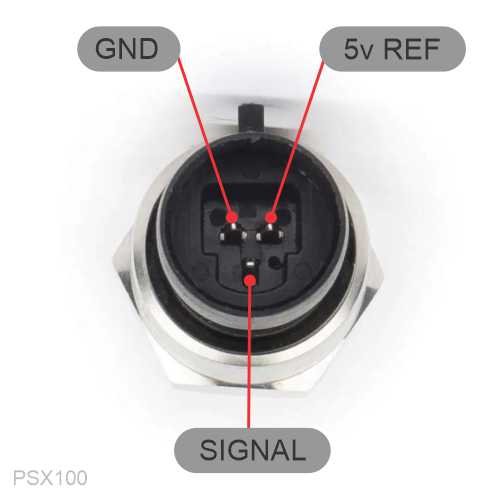

Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| 1 | Ground | Ground for sensor supply and signal |
| 2 | +5V ref | 5V sensor supply voltage |
| 3 | Signal | Sensor signal output |

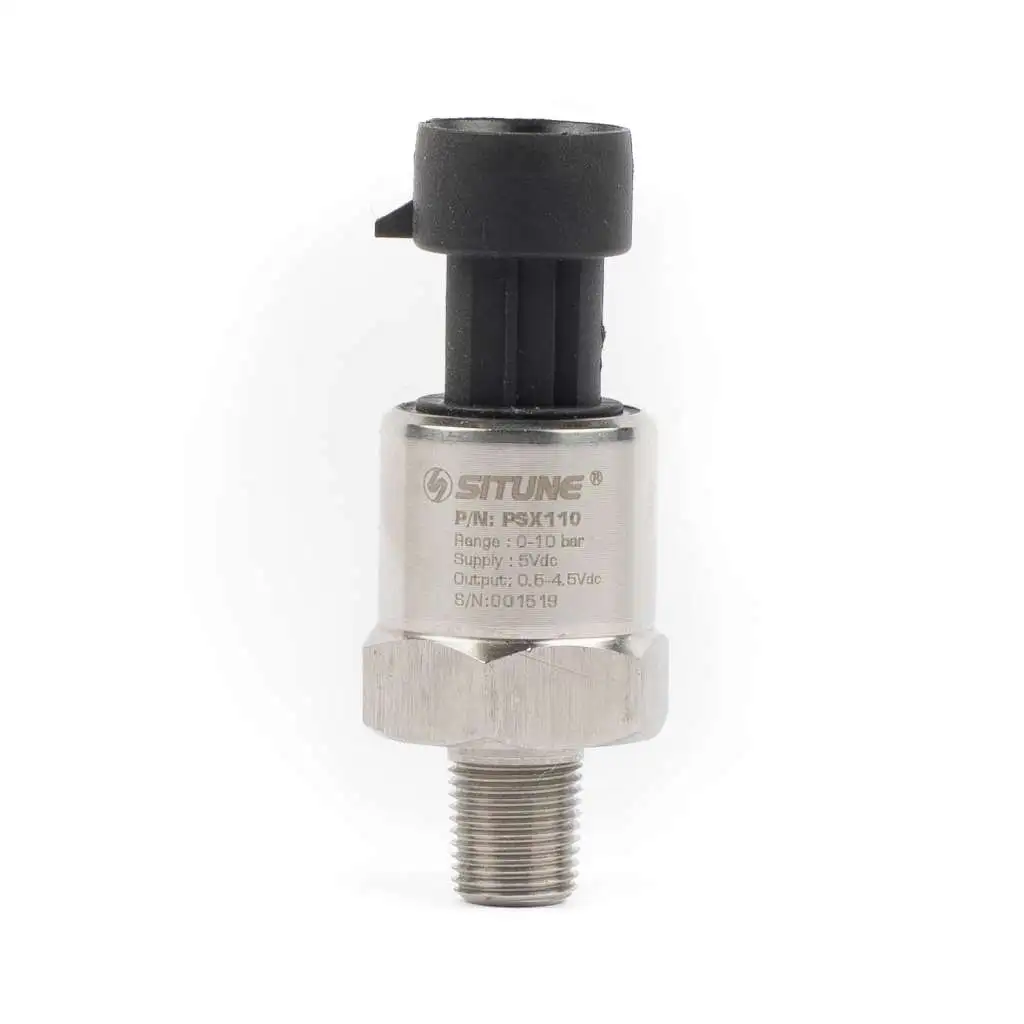

Situne PSX110 10 Bar Pressure Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Supply Voltage | 5.00 | VDC |
| Supply Voltage Tolerance | 10 | % |
Pressure
| Description | Value | Unit |
|---|---|---|
| Measurable range | 0 - 10 | Bar |
Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| 1 | Ground | Ground for sensor supply and signal |
| 2 | +5V ref | 5V sensor supply voltage |
| 3 | Signal | Sensor signal output |

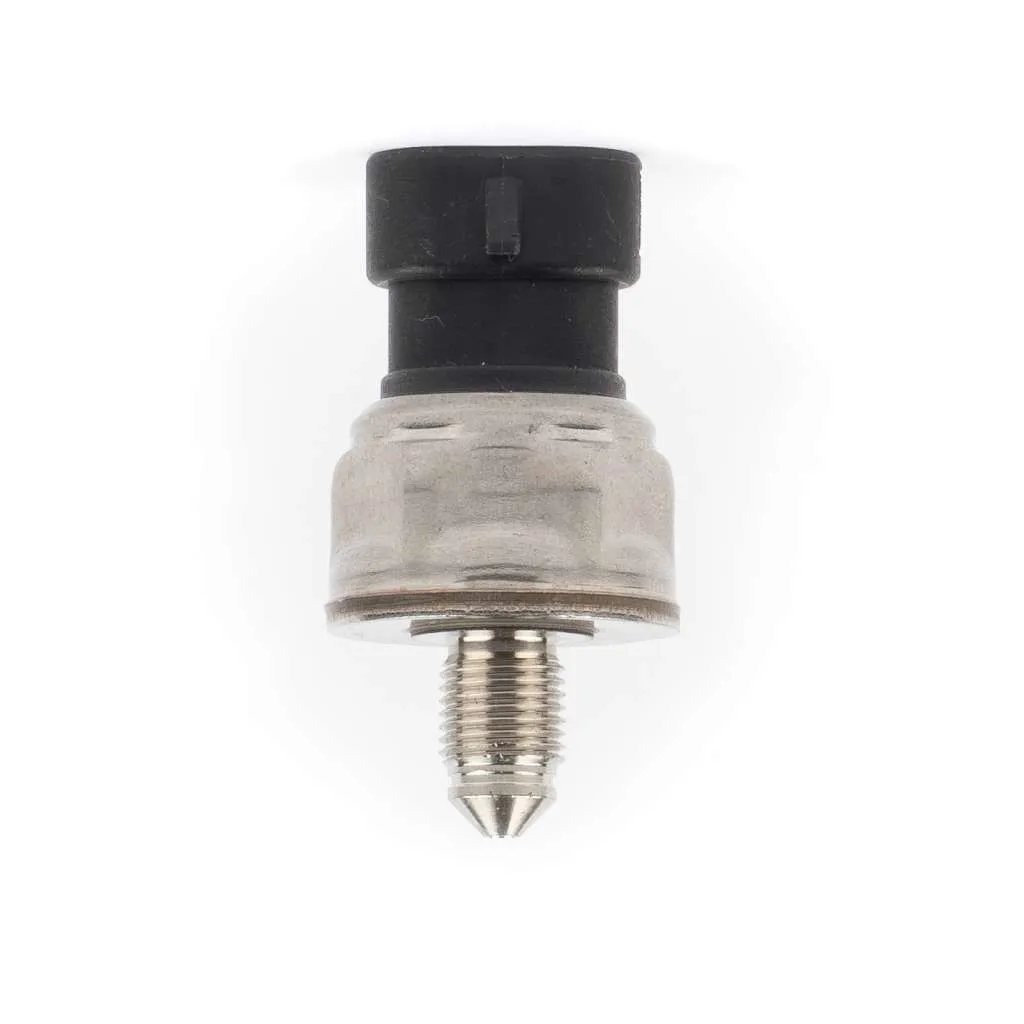

Situne PSX250 250 Bar Pressure Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Supply Voltage | 5.00 | VDC |
| Supply Voltage Tolerance | 10 | % |
Pressure
| Description | Value | Unit |
|---|---|---|
| Measurable range | 0 - 250 | Bar |

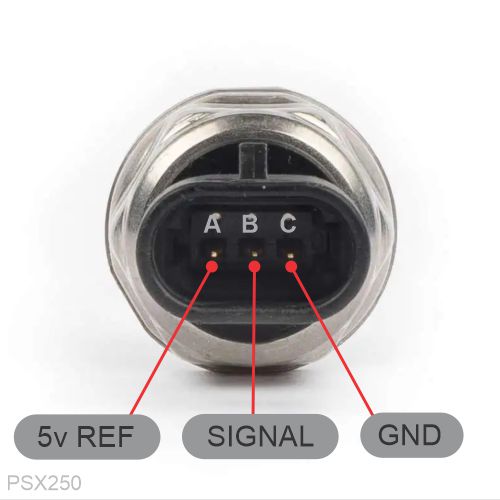

Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| 1 | +5V ref | 5V sensor supply voltage |
| 2 | Signal | Sensor signal output |
| 3 | GND | Ground for sensor supply and signal |

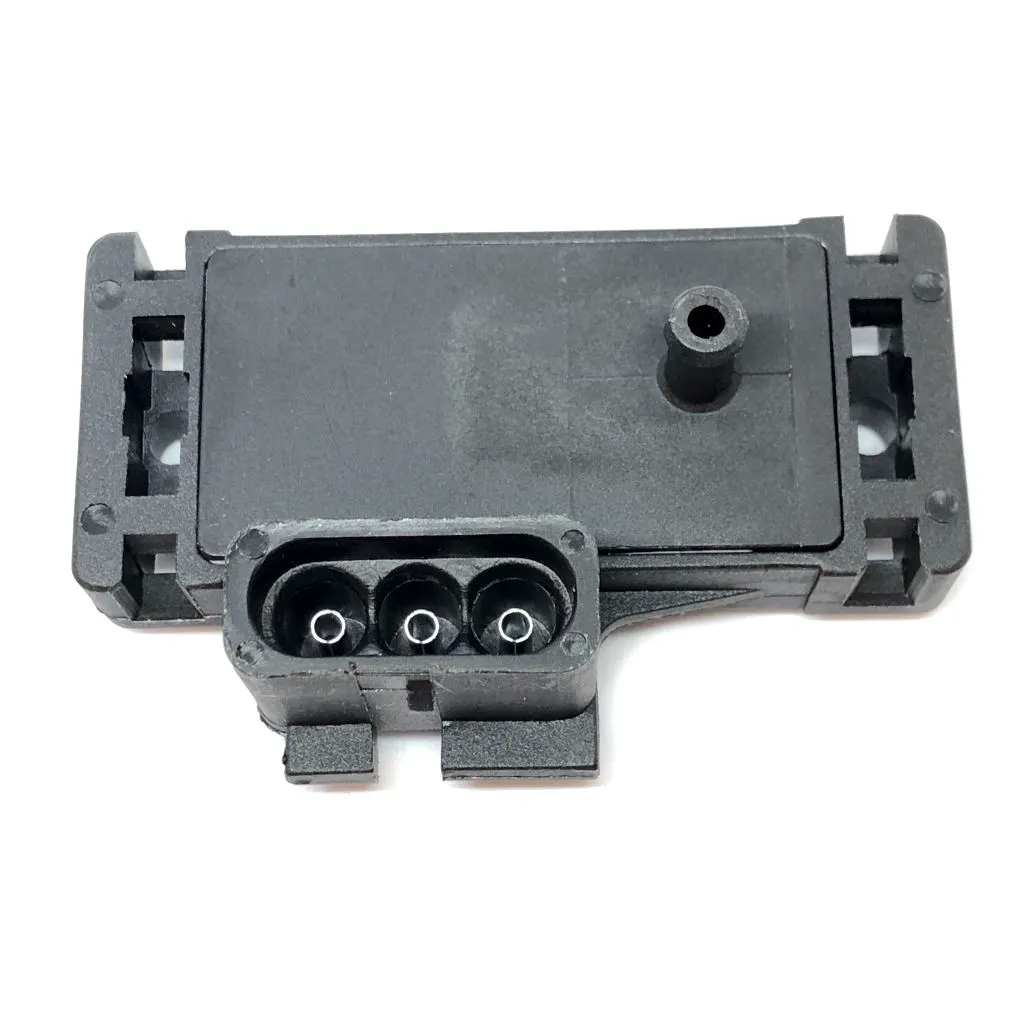

Situne PSM803 3 Bar MAP Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Supply Voltage | 5.00 | VDC |
| Supply Voltage Tolerance | 10 | % |
Pressure
| Description | Value | Unit |
|---|---|---|
| Measurable range (Absolute) | 0 - 3 | Bar |
| Maximum measurable boost pressure | 2 | Bar |

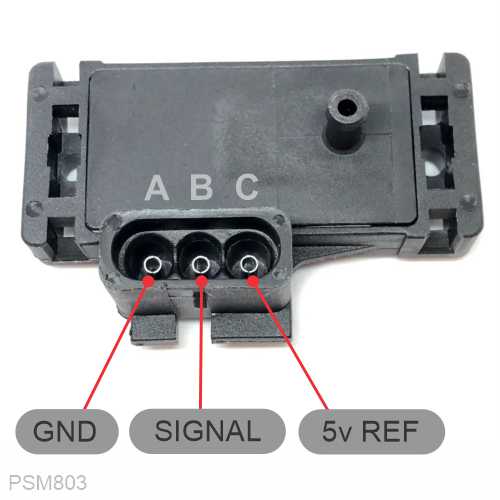

Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| A | GND | Ground for sensor supply and signal |
| B | Signal | Sensor signal output |
| C | +5V Ref | 5V sensor supply voltage |

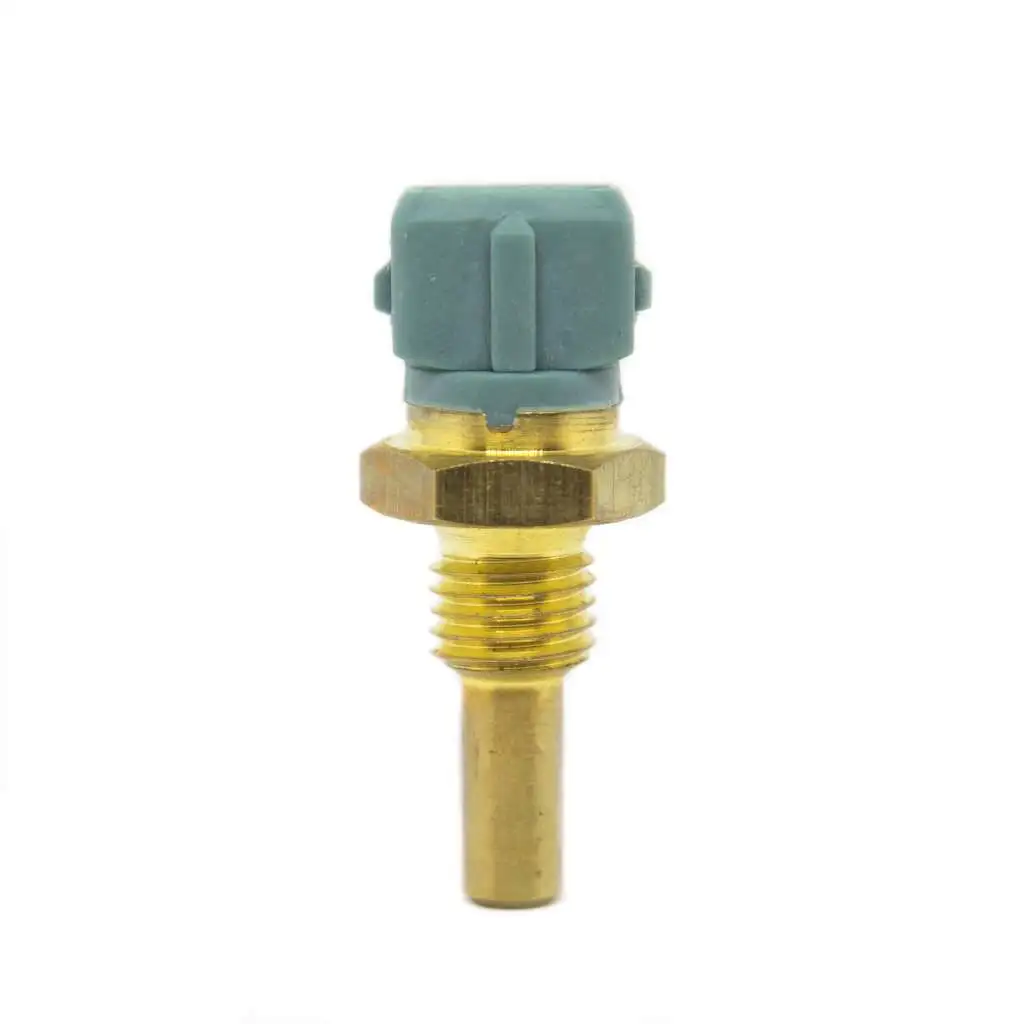

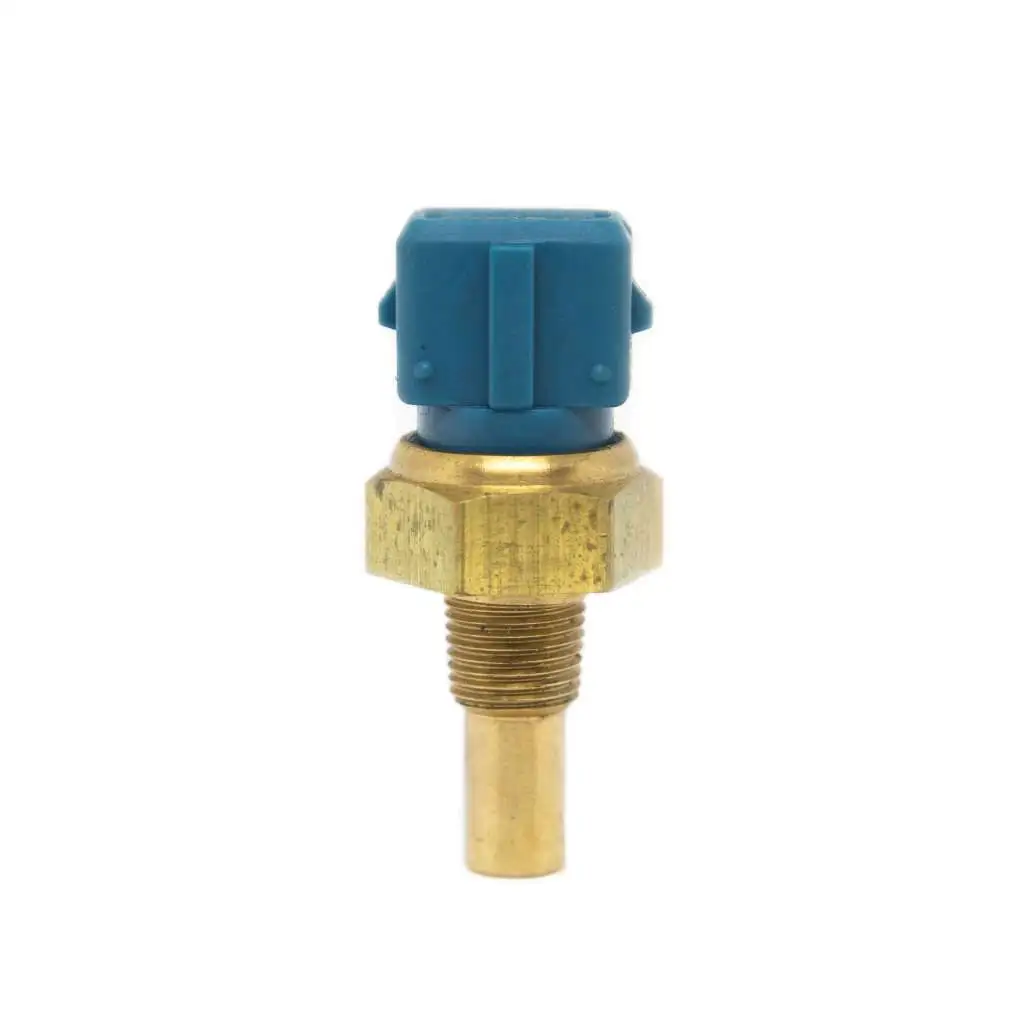

Situne TSM125 NTC Temperature Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Resistance @ -20°C | 16500 | Ohm |
| Resistance @ 30°C | 1789 | Ohm |
| Resistance @ 100°C | 196 | Ohm |
Temperature
| Description | Value | Unit |
|---|---|---|
| Measurable range | -40 - +150 | °C |
Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| 1 | R1-1 | One side of thermistor |
| 2 | R1-2 | One side of thermistor |

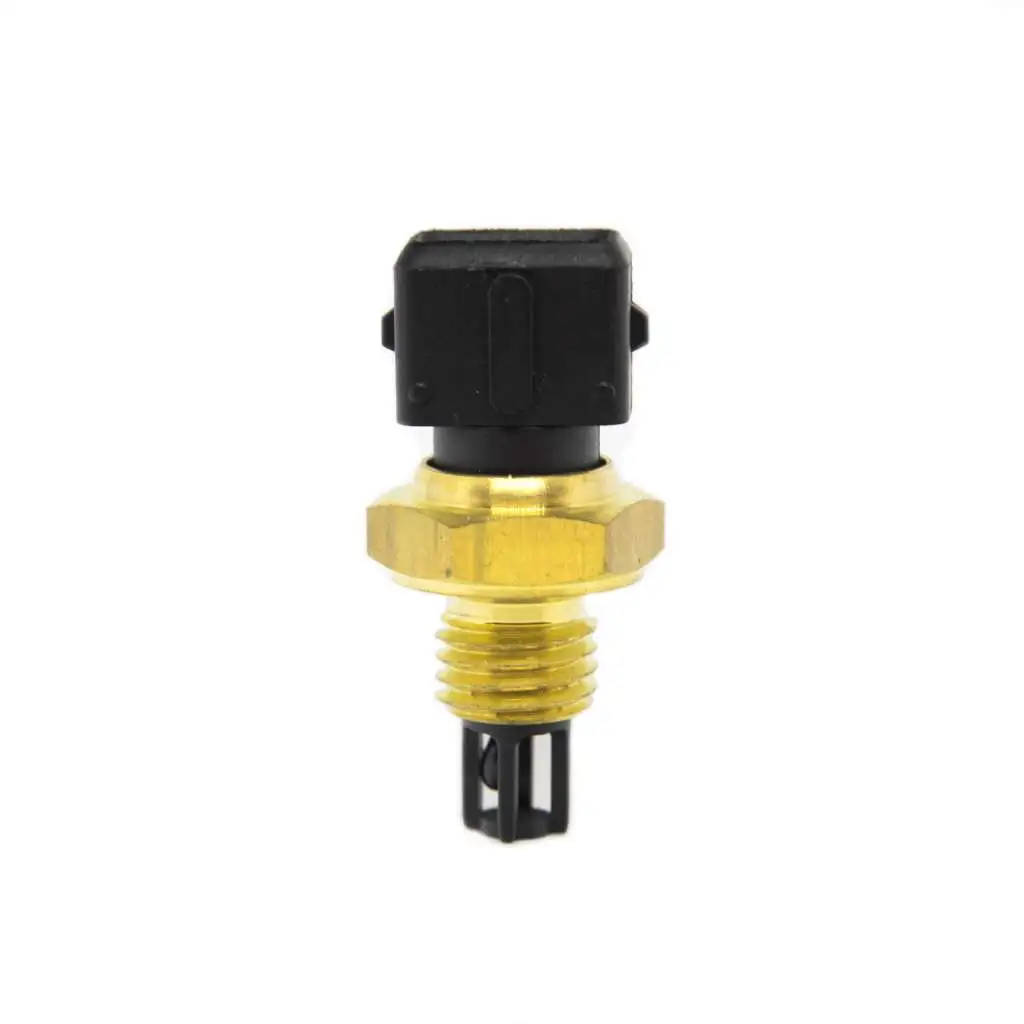

Situne TSX101 NTC Temperature Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Resistance @ -20°C | 15720 | Ohm |
| Resistance @ 30°C | 1826 | Ohm |
| Resistance @ 100°C | 218 | Ohm |
Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| 1 | R1-1 | One side of thermistor |
| 2 | R1-2 | One side of thermistor |
Situne TSX108 NTC Temperature Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Resistance @ -20°C | 10270 | Ohm |
| Resistance @ 30°C | 808 | Ohm |
| Resistance @ 100°C | 218 | Ohm |
Temperature
| Description | Value | Unit |
|---|---|---|
| Measurable range | -40 - +150 | °C |
Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| 1 | R1-1 | One side of thermistor |
| 2 | R1-2 | One side of thermistor |
Situne TSX125 NTC Temperature Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Resistance @ -20°C | 20000 | Ohm |
| Resistance @ 30°C | 1889 | Ohm |
| Resistance @ 100°C | 186 | Ohm |
Temperature
| Description | Value | Unit |
|---|---|---|
| Measurable range | -40 - +150 | °C |
Mechanical
| Description | Value | Unit |
|---|---|---|
| Thread | M12x1.5 | |
| Spanner Hex Head | 17 | mm |
| Weight | 25 | g |
| Dimensions | 51 x 22 x 22 | mm |
Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| 1 | R1-1 | One side of thermistor |
| 2 | R1-2 | One side of thermistor |

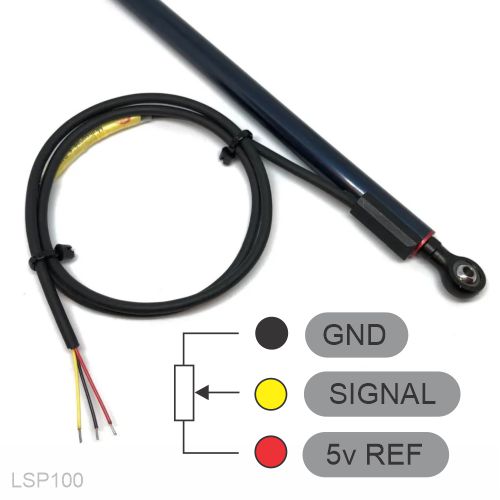

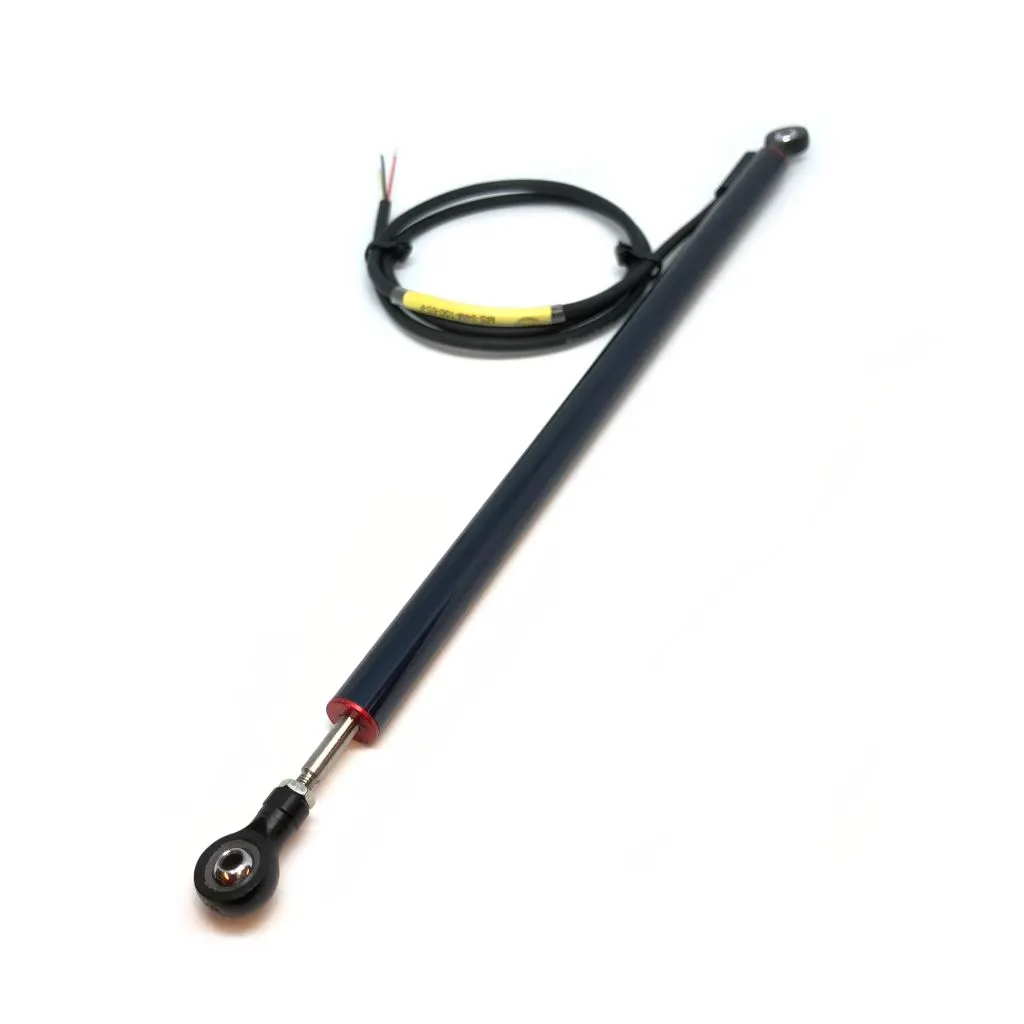

Situne LSP-100 Linear Potentiometer
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Total Resistance | 10000 | Ohm |
| Resistance Tolerance | +/-10 | % |
Mechanical
| Description | Value | Unit |
|---|---|---|
| Maximum Stroke | 100 | mm |
| Maximum Operational Speed | 10 | m/s |
| Environmental protection | IP65 | |
| Eyeball diameter | 3 | mm |
| Maximum operating temperature | 175 | °C |
Pinout
| Pigtail Color | Signal Name | Signal Description |
|---|---|---|
| Black | Ground | Ground for sensor supply and signal (One Side of resistor) |
| Red | +5V ref | 5V sensor supply voltage (One Side of resistor) |
| Yellow | Signal | Sensor signal output (Slider) |
Situne LSP-150 Linear Potentiometer
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Total Resistance | 10000 | Ohm |
| Resistance Tolerance | +/-10 | % |
Mechanical
| Description | Value | Unit |
|---|---|---|
| Maximum Stroke | 150 | mm |
| Maximum Operational Speed | 10 | m/s |
| Environmental protection | IP65 | |
| Eyeball diameter | 3 | mm |
| Maximum operating temperature | 175 | °C |
Pinout
| Pigtail Color | Signal Name | Signal Description |
|---|---|---|
| Black | Ground | Ground for sensor supply and signal (One Side of resistor) |
| Red | +5V ref | 5V sensor supply voltage (One Side of resistor) |
| Yellow | Signal | Sensor signal output (Slider) |

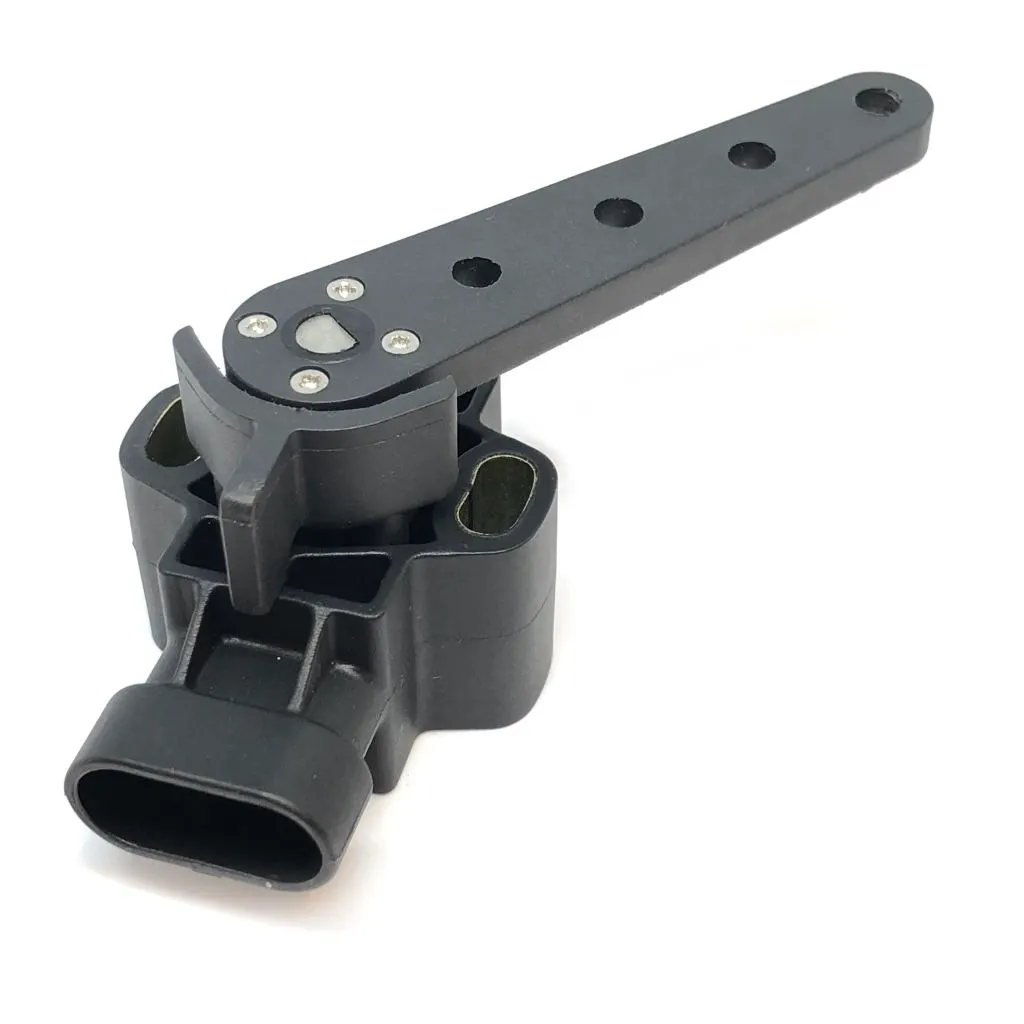

Situne ROT-120 Rotational Position Sensor
Specification
Electrical
| Description | Value | Unit |
|---|---|---|
| Total Resistance | 10000 | Ohm |
| Resistance Tolerance | +/-10 | % |
Mechanical
| Description | Value | Unit |
|---|---|---|
| Maximum Rotation Angle | 100 | ° |
| Environmental protection | IP65 |

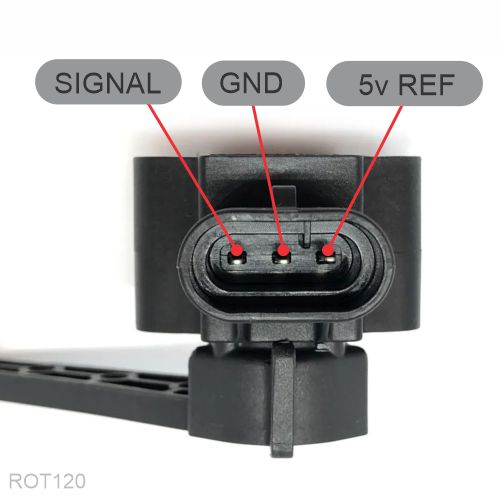

Pinout
| Pin # | Pin Name | Pin Description |
|---|---|---|
| 1 | Signal | Sensor signal output (marking on mating Superseal connector is no.3!) |
| 2 | GND | Ground for sensor supply and signal |
| 3 | +5V ref | 5V sensor supply voltage (marking on mating Superseal connector is no.1!) |
